Add Fields to Content Types

In order for a field to be used, it needs to be added to a specific content type. A field can also be defined in a YAML file for fields you want to be added automatically, see Adding a field programatically.

To add a field manually, this can be done through the “Manage Fields” interface for a given Content Type. More specifically, find the Tripal menu in the shortcuts toolbar at the upper right. In that menu select Page Structure. Alternatively, you can navigate to the path /admin/structure/bio_data. You will find yourself on the Tripal Content Type page. There, choose “Manage Fields” for the Content Type you want to add a field to, and then click “+ Create a new field”.

Field Categories

Each field is present in one of the categories on this page based on its annotation. For Tripal Core fields, you will note that we use the categories Tripal Fields (tripal) and Chado Fields (tripal_chado), and this is based on whether the field is defined in the tripal or tripal_chado module.

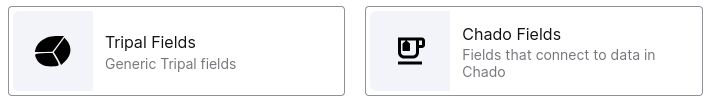

Selectors for Tripal fields and for Chado fields

For extension modules, we recommend determining your category as follows:

  • tripal: any generic tripal field which is independent of the storage backend. Usually this means it is very application-specific without a biological focus (e.g. permission control).

  • tripal_chado: any field which is dependent on chado for data storage/retrieval. This includes most fields in Tripal Core, and likely most fields in general.

  • custom category: you may want to make your own category if your field uses a different storage backend or REST API. You can also create your own category for a module providing a large number of fields supporting specific functionality, but be careful to ensure this will be intuitive to your users and keep it functionality focused, not development group focused (e.g. Genetic Variants but not MyLab). When making a custom category you will also need to provide an icon. You can follow the Drupal documentation on how to do this.

As an example, you can see the category tripal_chado has been defined for the Additional Type field:

use Drupal\Core\StringTranslation\TranslatableMarkup;

/**
 * Plugin implementation of Tripal additional type field type.
 */
#[TripalFieldType(
  id: 'chado_additional_type_type_default',
  category: 'tripal_chado',
  label: new TranslatableMarkup('Chado Type Reference'),
  description: new TranslatableMarkup('A Chado type reference'),
  default_widget: 'chado_additional_type_widget_default',
  default_formatter: 'chado_additional_type_formatter_default',
)]
class ChadoAdditionalTypeTypeDefault extends ChadoFieldItemBase {
...

Adding a field programatically

If you are creating a custom module and want to add fields to content types programatically, the preferred method is to define the fields in a YAML file in your module’s config directory, and they will be added automatically when your module is installed.

For example, this is the first field defined in tripal_chado/config/install/tripal.tripalfield_collection.general_chado.yml

-   name: 'organism_genus'
    content_type: 'organism'
    label: 'Genus'
    type: 'chado_string_type_default'
    description: 'The genus name of the organism.'
    cardinality: 1
    required: true
    storage_settings:
        storage_plugin_id: 'chado_storage'
        storage_plugin_settings:
            base_table: 'organism'
            base_column: 'genus'
        max_length: 255
    settings:
        termIdSpace: 'TAXRANK'
        termAccession: '0000005'
    display:
        view:
            default:
                region: 'content'
                label: 'above'
                weight: 10
                settings:
                  field_prefix: '<em>'
                  field_suffix: '</em>'
        form:
            default:
                region: 'content'
                weight: 10

If you need to add a field later, such as in an update hook, use code similar to the following to load a specific field as defined in a YAML file.

$yaml_path = __DIR__ . '/config/install/your.yml';
$field_name = 'your_field';

/** @var \Drupal\tripal\Services\TripalFieldCollection $fields_service **/
$fields_service = \Drupal::service('tripal.tripalfield_collection');
/** @var \Drupal\Core\Entity\EntityTypeManager $entity_type_manager **/
$entity_type_manager = \Drupal::entityTypeManager();
$fields = Yaml::decode(file_get_contents($yaml_path));
$field = $fields[$field_name];
$bundle = $field['content_type'];
/** @var \Drupal\tripal\Entity\TripalEntityType $entity_type **/
$entity_type = $entity_type_manager->getStorage('tripal_entity_type')->load($bundle);
if ($entity_type) {
  $fields_service->addBundleField($field);
}
